Franklin Electric 1/2HP 10GPM V Series Thermoplastic Submersible Well Pump

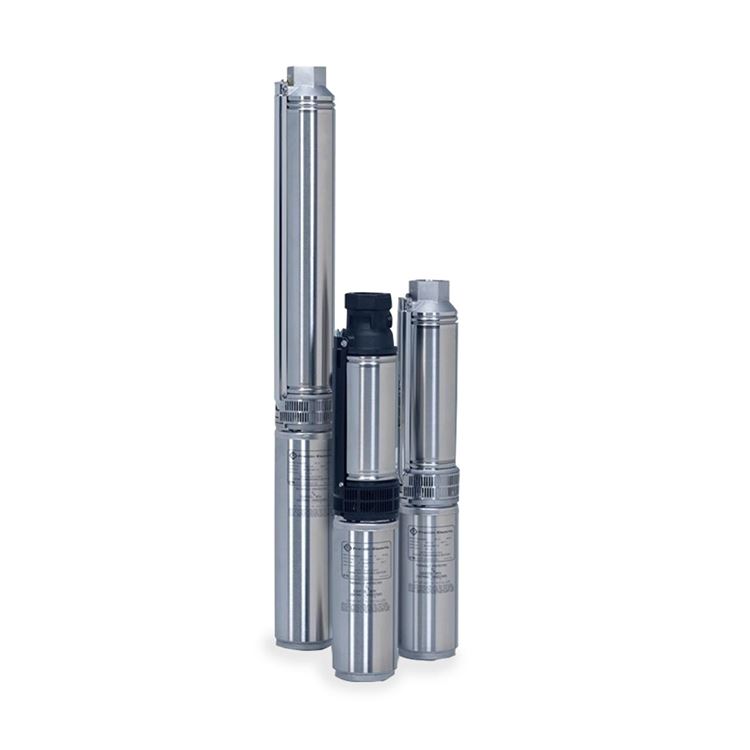

**FPS Series V Submersible Pump**

The FPS Series V submersible pump features distinctive hydraulic designs that enhance efficiency and reduce wear, even when handling abrasive materials. It offers discharge and motor brackets made from either thermoplastic or stainless steel, along with a removable check valve system. The pump is available in flow rates of 5, 7, 10, 15, 20, and 25 gallons per minute (gpm) and horsepower options ranging from 1/2 to 5.

**Features:**

- Six performance options: 5, 7, 10, 15, 20, and 25 gpm
- Horsepower options range from 1/2 to 5
- Discharge head and motor bracket are constructed from industry-proven engineered materials, available in either 300 series stainless steel or high-quality thermoplastic resins
- Large wrench flat area on the discharge head facilitates easy installation
- Dry-run top bearing reliably supports the 300 series stainless steel 7/16-inch hex shaft
- Includes a removable internal check valve
- Driven by Franklin Electric’s corrosion-resistant super stainless 4-inch submersible motors with lightning protection
- Maximum water temperature, with proper flow, is 120 °F / 49 °C; consult the factory for additional details.

Shipping Information:

Most orders ship within 24-48 hours, with eligible orders of in-stock items received by 12pm ET processing and shipping the same day.
Shipping weight: 25lbs
Shipping Dimensions: 23x10x10

Franklin Electric 10FV05P4-2W230 Series V Submersible Pump Specifications

Water Well Motors

• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 0.5 HP
• VOLTAGE: 1ø, 230V
• RPM: 3450
• MAX AMBIENT TEMPERATURE: 120°F/49°C
• LEAD: 2-wire

Water Well Pump Ends

• DISCHARGE SIZE: 1.25” FNPT

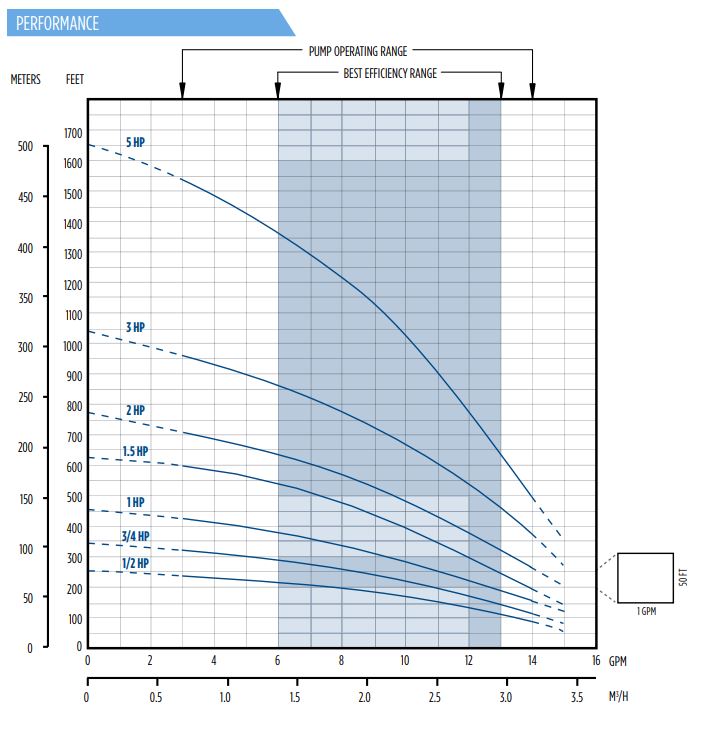

• NOMINAL FLOW RATING: 10 GPM
• HORSEPOWER: 0.5 HP
• MAXIMUM CAPACITY: 15 GPM
• MAXIMUM HEAD: 250’
• STAGES: 6
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Thermoplastic
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
